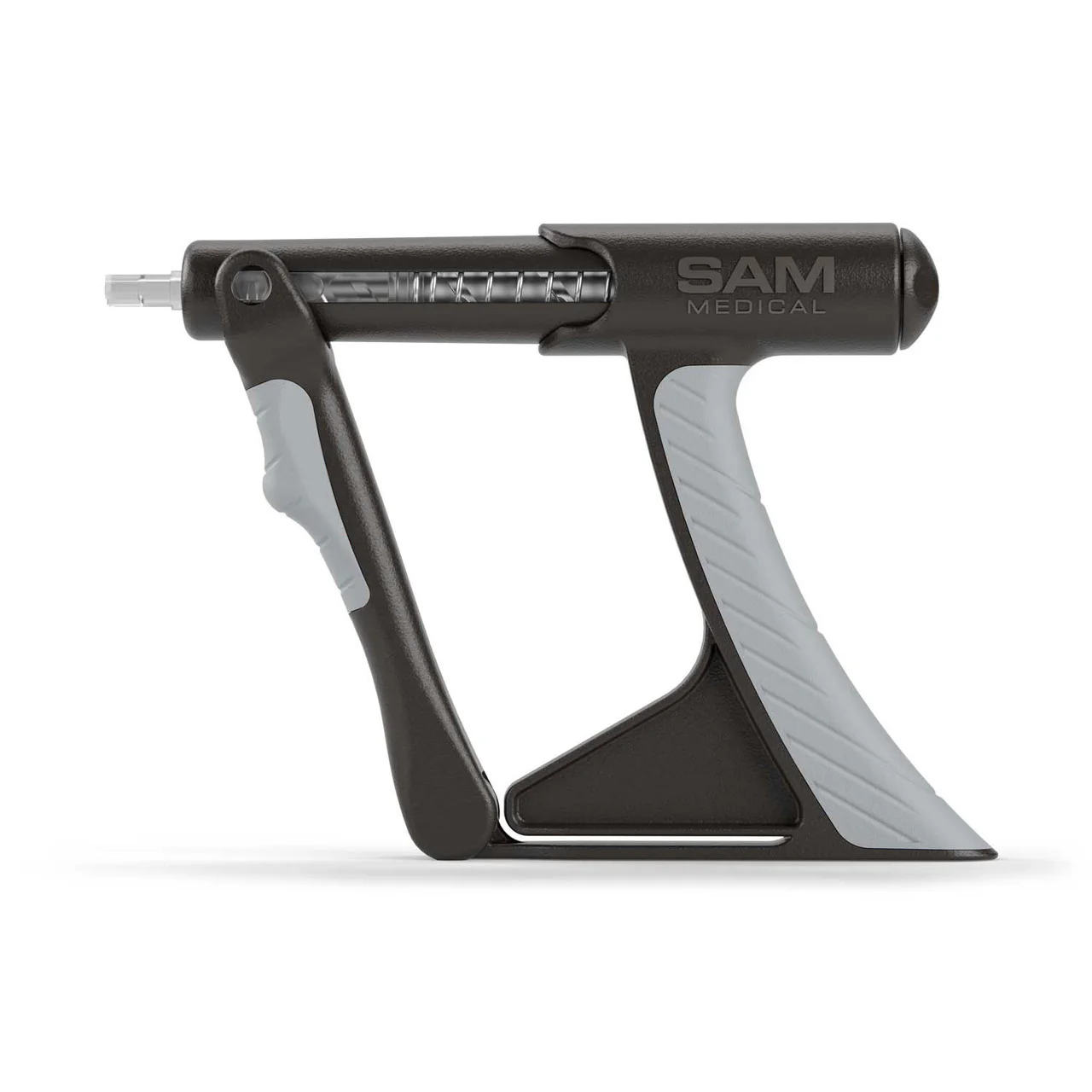

The SAM IO® Intraosseous Access System is a manual, battery-free IO device engineered for rapid vascular access when traditional IV lines are difficult or impossible to obtain. A Class I Medical Device designed for use in emergencies, pre-hospital intervention scenarios and hospital settings, the SAM IO enables effective intraosseous access in:
- Proximal tibia (adults)
- Distal tibia (paediatrics only)
- Humeral head (adults)
Trusted Technology for Emergency Vascular Access.

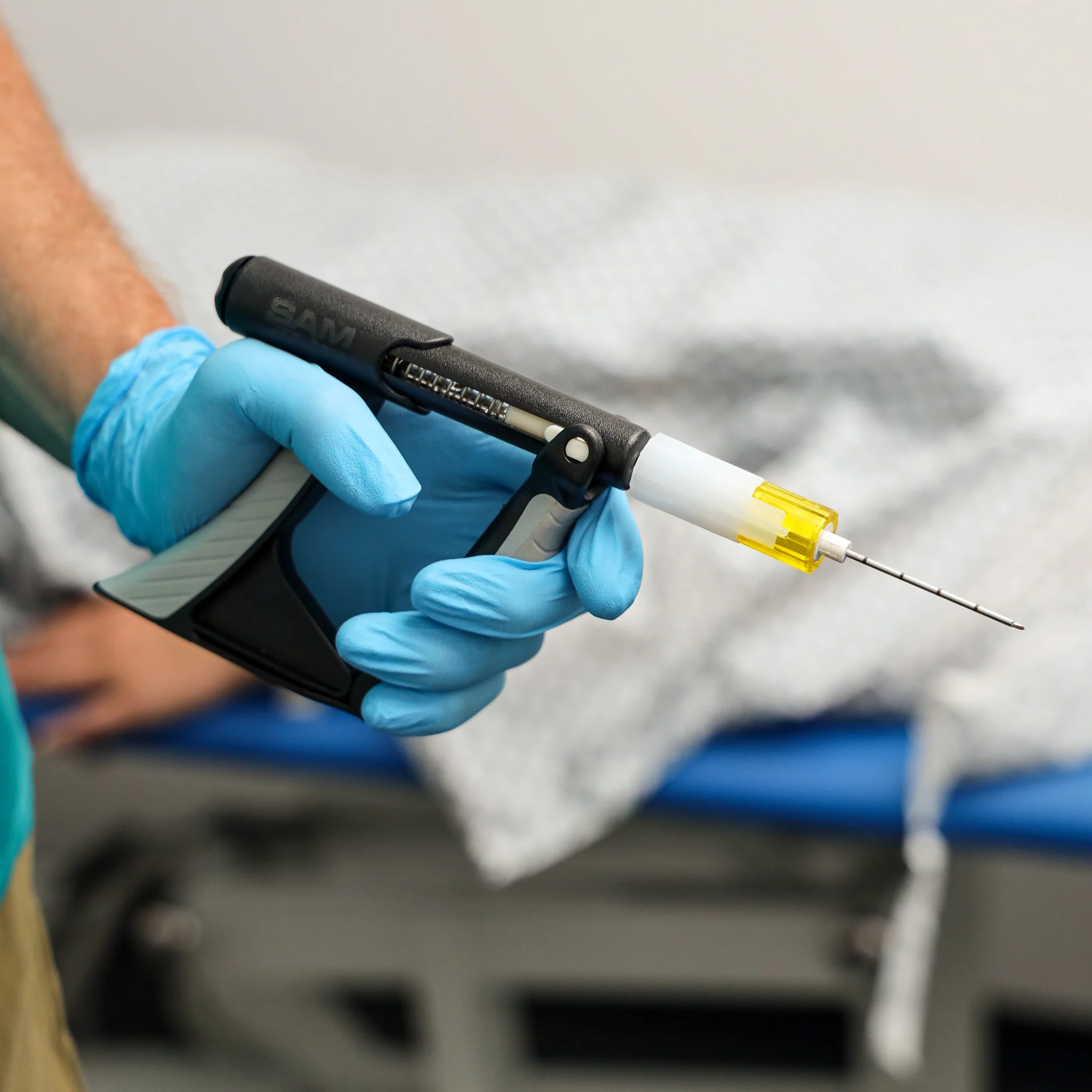

Featuring a trigger-activated, rotational insertion mechanism, the SAM IO offers dependable performance in both hospital and prehospital settings.
Unlike battery-powered devices, the SAM IO is always ready, with no charging or no waiting times - it's ready when you are. Whether you're on the frontline, in the field or in a hospital setting, the SAM IO delivers rapid, effective access to the vascular system when IV placement is not an option.
The SAM IO offers a stable IO route for fluid resuscitation, medication delivery, and blood draws for up to 24 hours.
Compatible Consumables:
-
SAM IO® Needles – 15g (15mm / 25mm / 45mm)
-
SAM IO® Adaptor – Use with compatible non-SAM IO needles
-
SAM IO® Stabiliser – Secures needle post-insertion
-
SAM IO® Training Kit – Includes anatomical bone models for training
Please note: consumables are sold separately.
Key Features:
-
Manual operation – No batteries or power required
- Trigger-driven mechanism – Simple, intuitive, and effective
-
Standard Luer-lock connection – Easy integration with extension sets
- Colour-coded needle hubs – Fast identification and depth accuracy
-
Compatible with:
- Proximal tibia (Adults)
- Humeral head (Adults)
- Distal tibia (Paediatrics only)
-
Indwelling time – Up to 24 hours
-
Compact & rugged – MIL-STD 810G certified for field durability
-
Reusable driver – Designed for long-term, repeated use
-
Class I Medical Device – CE marked & compliant to EU MDR 2017/745
Technical Specs:
-
Driver Material: High-strength polycarbonate
-
Insertion Mechanism: Trigger-compressed rotational drive
-
Connection: Standard Luer-lock
-
Needle Sizes: 15mm / 25mm / 45mm (15g, sold separately)
-
Use Case: Emergency / Urgent / Medically necessary IO access
