Eko DUO Digital Electronic Stethoscope and ECG with Bluetooth
- The first combined digital electronic stethoscope + handheld ECG provides unprecedented insight into cardiac function.
- Removable earpieces support wireless auscultation using the Eko mobile App and headphones with 60x amplification of heart, lung, and body sounds.
- The single-lead ECG enables clinicians to monitor the heart's electrical activity and screen for arrhythmias.
- The free Essentials Plan enables clinicians to visualize, record and save sounds and ECGs for further analysis, or securely share them for a second opinion.

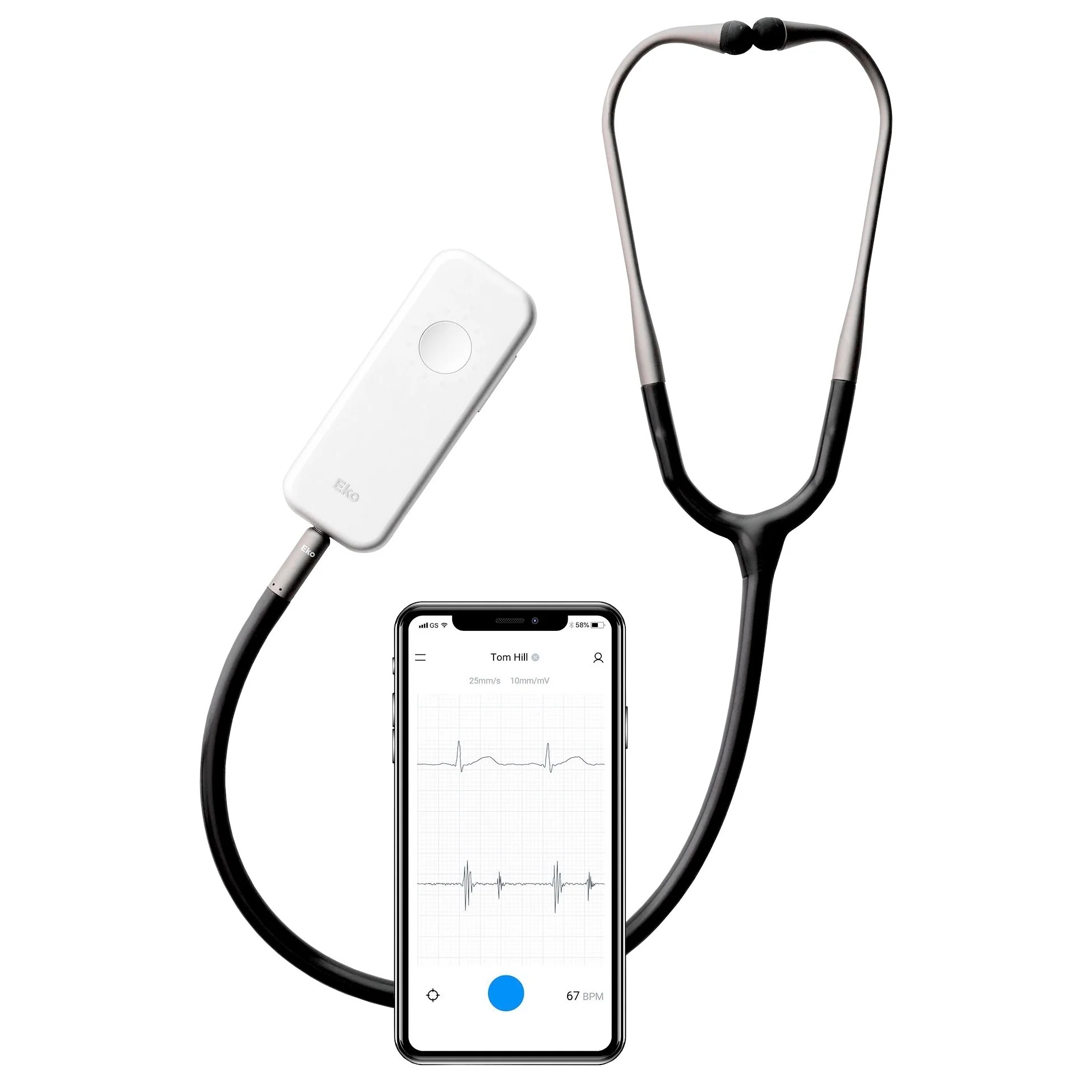

Two in One Stethoscope + ECG
The most advanced device of its kind, DUO combines a powerful digital stethoscope and ECG in a single handheld device. A large audio driver and comfortable ear-tips deliver rich heart sounds, while Eko’s patient-friendly software makes it simple to visualize and share sounds and ECGs. DUO can be used by clinicians as their day-to-day stethoscope, or by patients at home for longer-term self-monitoring when prescribed by a physician.
Pair with Eko Software
Unlock the full potential of DUO by pairing with the Eko Platform, available on Apple iOS, Android 8.0+ and Windows 10+. A single dashboard connects you to multidimensional patient care, exam records, reports and colleagues.

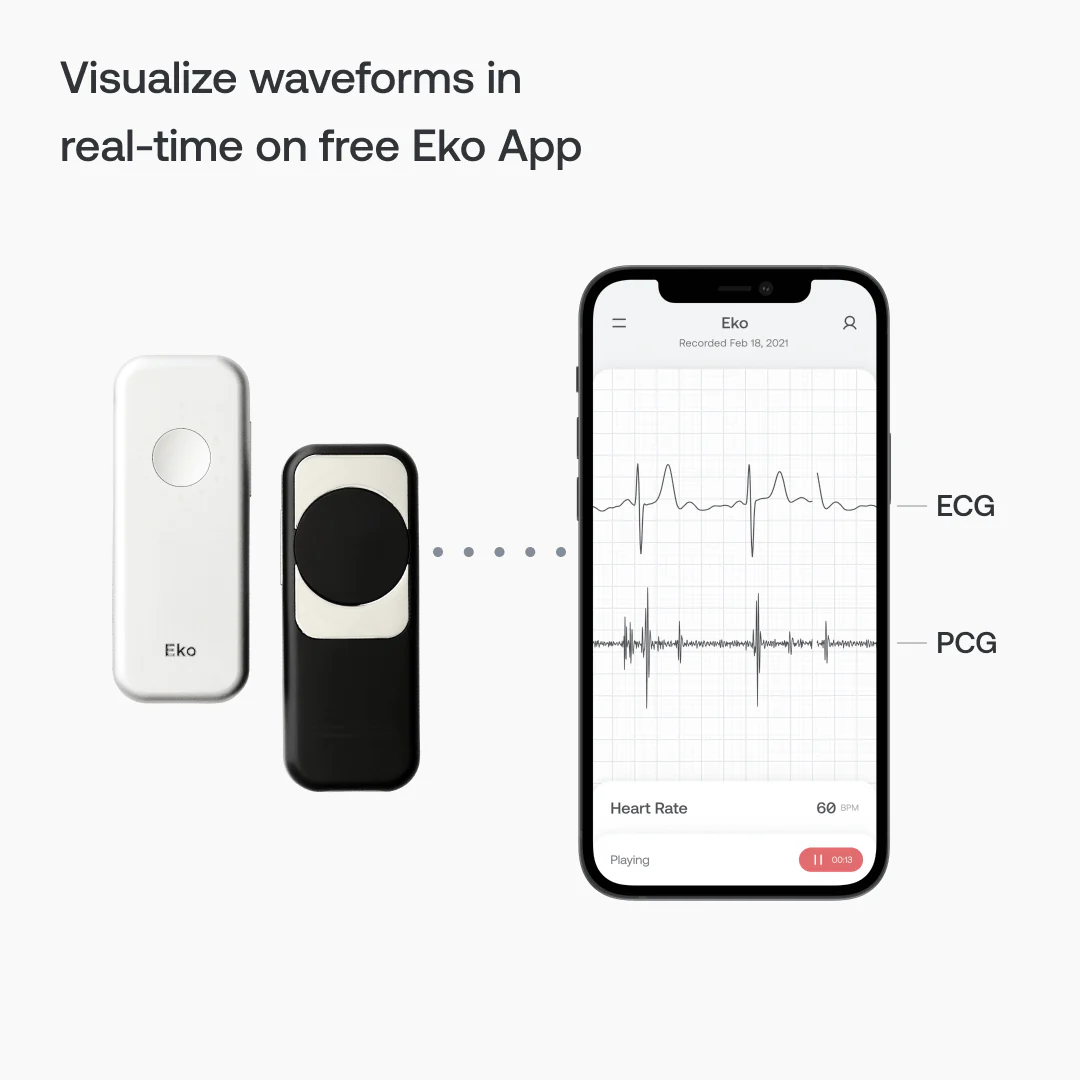

- FREE PLAN: Visualize heart sound waveform (phonocardiogram) & ECG (electrocardiogram) tracings in real-time.
- FREE PLAN: Capture 15, 30, 60, or 120-second recordings to chronicle a patient’s exam history.

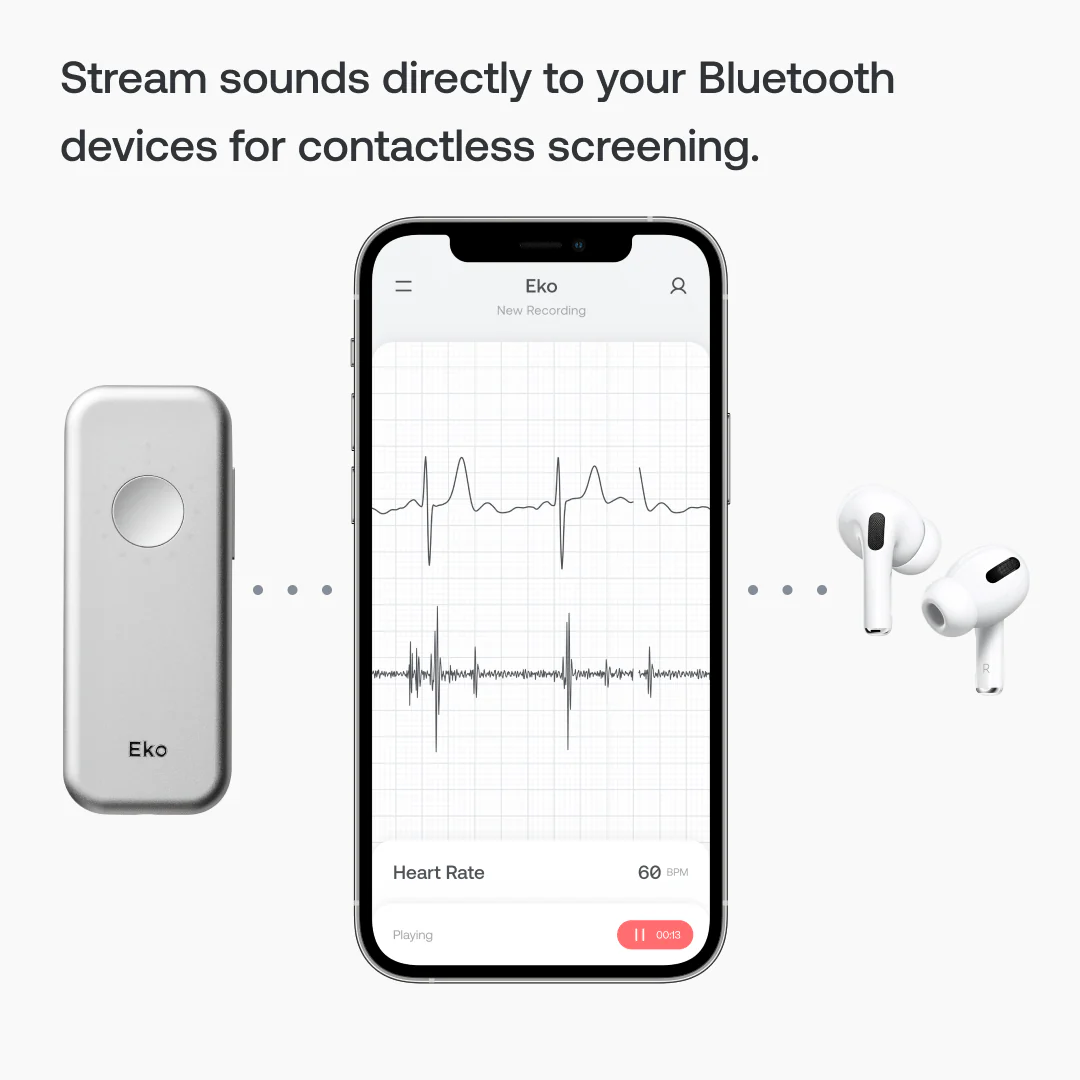

- FREE PLAN: Auscultate wirelessly utilizing Bluetooth technology
- FREE PLAN: Connect to the Eko Dashboard to view patient records and download reports

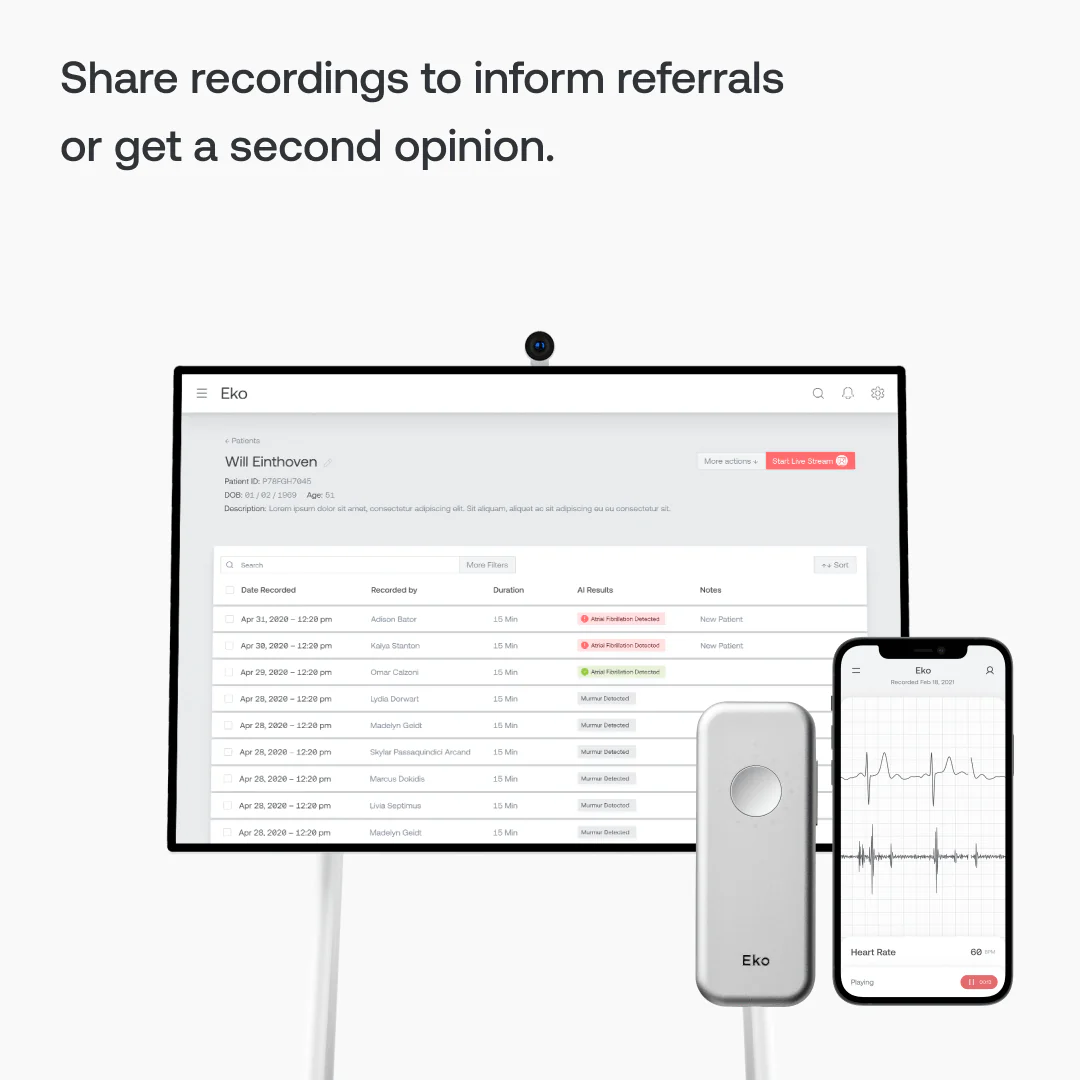

- FREE PLAN: Share recordings for a second opinion or referral as easily as sending an email.

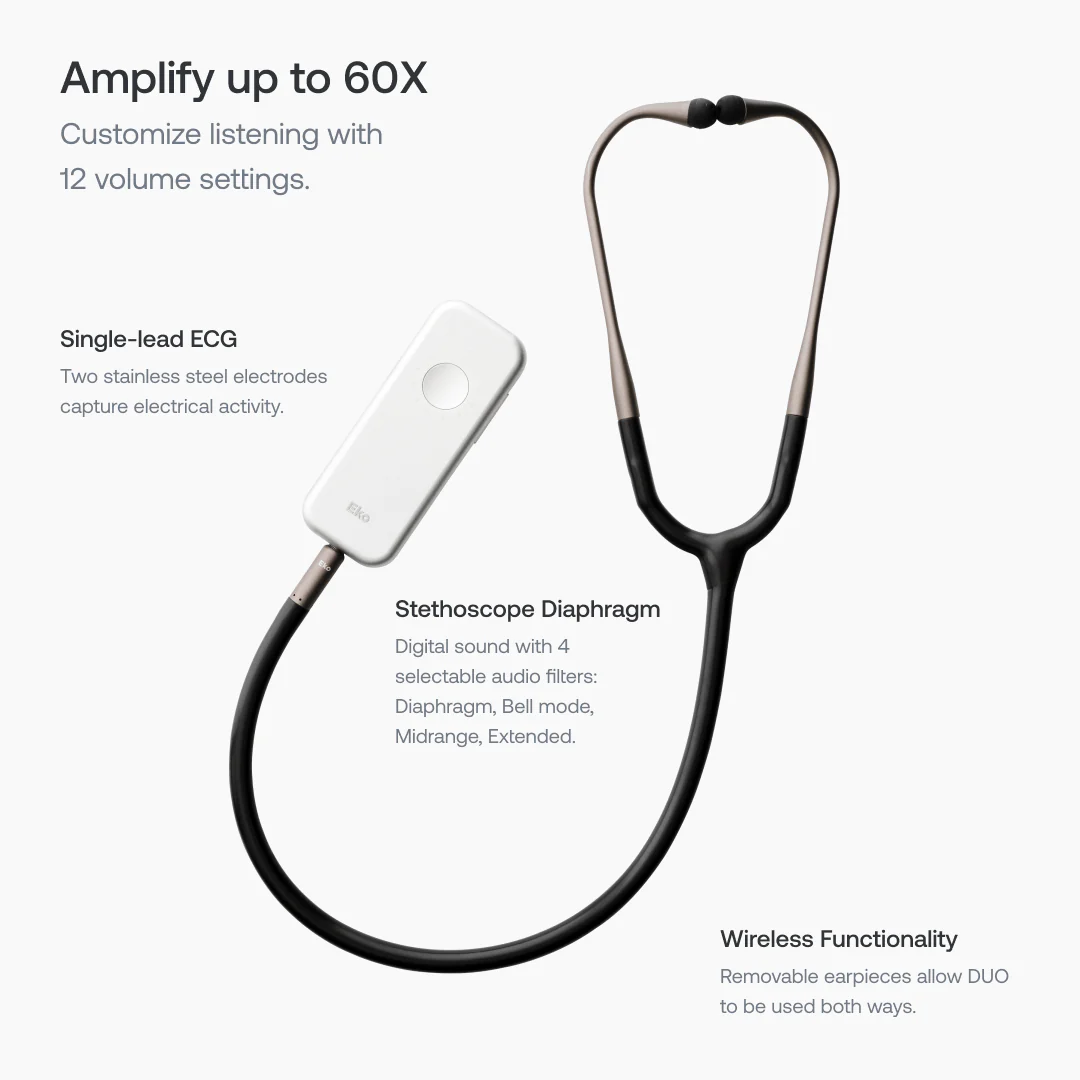

Digital Stethoscope
- 60x sound amplification
- 12 volume settings
- Digital-only sound mode
- 20Hz - 2Khz frequency response
- 4000Hz sample rate
- 4 selectable audio filters: Diaphragm 100-500Hz, Bell mode 20-200Hz, Midrange 50-500Hz, Extended 20-2000Hz
Single-Lead ECG
- 2 stainless steel electrodes
- 0.01Hz high pass filter
- Selectable 50 / 60Hz mains filter
- 500 Hz sampling rate

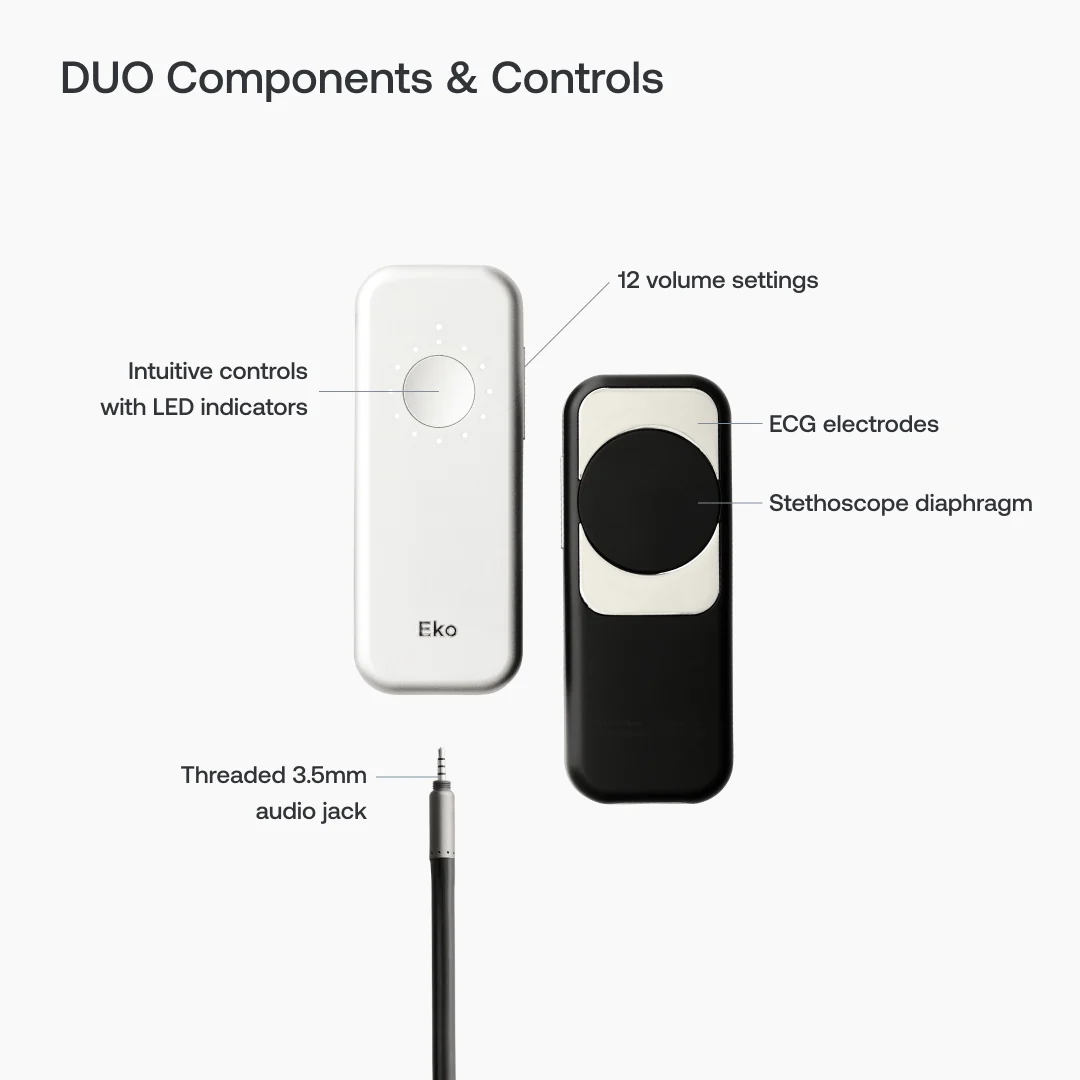

Connection & Storage
- Threaded 3.5mm jack for headphones or audio cable
- Bluetooth 4.0 low-energy
- .WAV and .PDF file formats
Dimensions & Weight
- 119mm L x 47mm W x 16mm H
- Length with EARPIECE: 711.2mm
- 208g
Power
- Wireless induction charging
- Automatic power off after 5 minutes of inactivity
- Rechargeable lithium-ion battery with 9-hour life

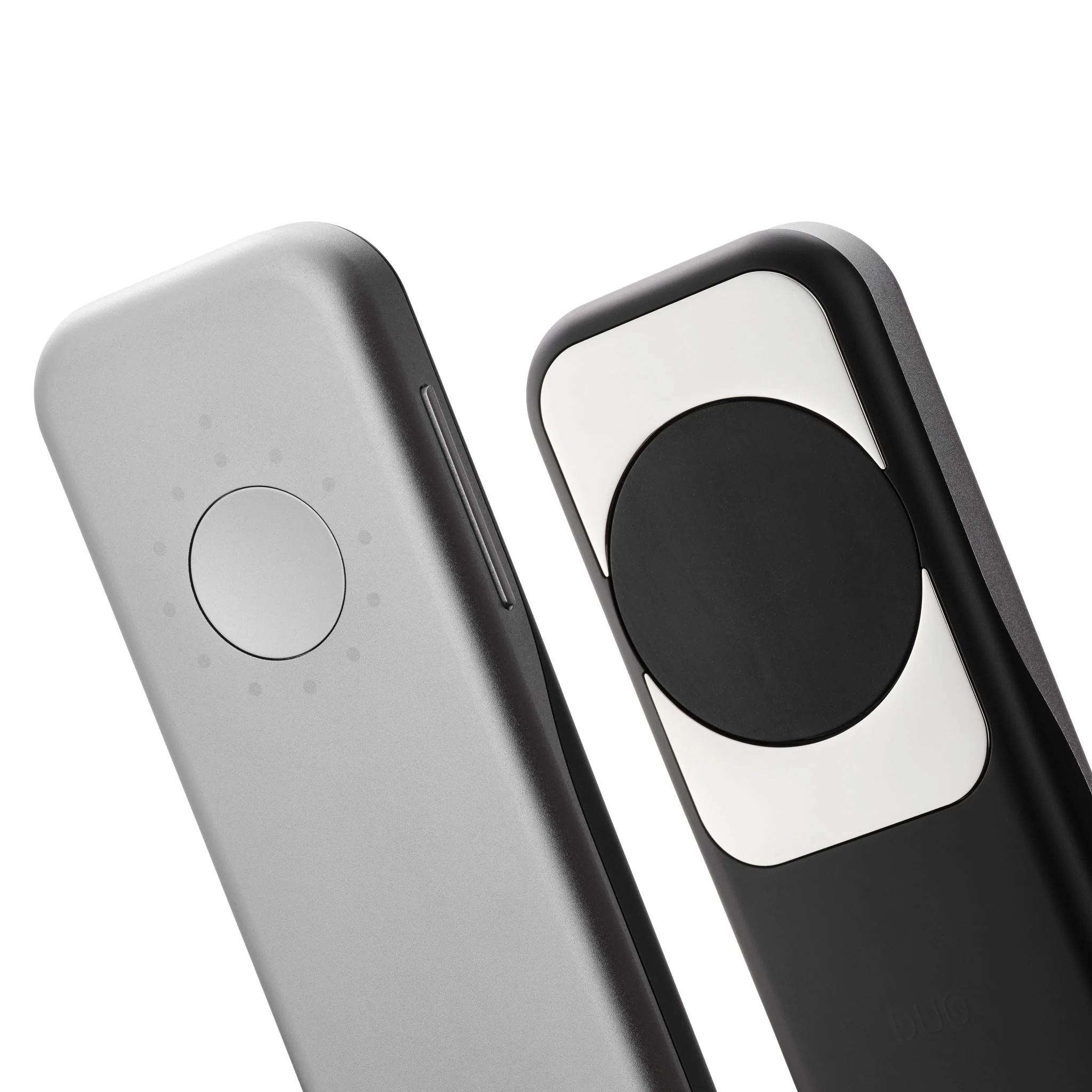

Materials
- 6061 machined aluminum
- High-impact ABS thermoplastic
- Does not contain natural rubber latex or phthalate plasticizers
- Clean with isopropyl alcohol wipes
Warranty
Comes with 2 year warranty. Warranty period commences on the date of delivery.
This warranty does not apply to the Eko CORE Littmann Stethoscope, only the Eko DUO Stethoscope.
